3558005X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

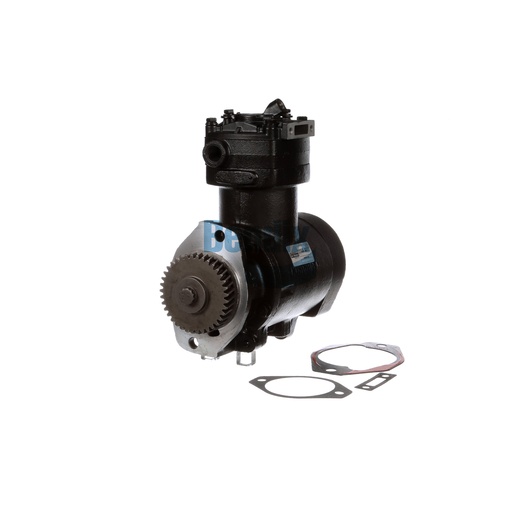

The Bendix Compressor is an essential component designed to optimize air brake performance in commercial vehicles. Weighing 20.9 kg (45.99 lb) and manufactured in the United States, this compressor is engineered for durability and high efficiency. It features a bore size of 92.1 mm and operates effectively with engine oil feed lubrication, making it a reliable choice for heavy-duty applications. This compressor is compatible with various engine models, ensuring seamless integration into your existing systems. By delivering consistent air pressure, it enhances braking power and responsiveness, contributing to overall vehicle safety. When looking for high-quality Bendix OEM parts, Source One Parts Center stands out as the best option, offering trusted components that enhance your truck's performance.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
13.2 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Thru-Drive Shaft Connector
9-Tooth Spline
Bore Size
92.1 mm
Engine Model
C Series
Engine Manufacturer
Cummins
Lubrication
Engine Oil Feed
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
45.99 lb
