3558020X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

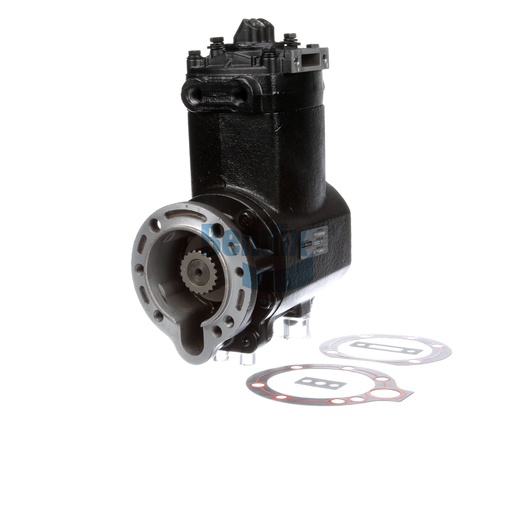

The Bendix Compressor is a state-of-the-art solution for air brake systems in commercial vehicles. With a substantial net weight of 17.9 kg (39.48 lb) and crafted in the United States, this compressor is designed for heavy-duty performance and reliability. It operates effectively with water cooling and is compatible with Cummins engine models, making it a versatile choice for various truck applications. This compressor features a bore size of 92 mm and a displacement of 15 CFM at 1250 RPM, ensuring powerful air delivery for optimal brake performance. By using this compressor, fleets can maintain their vehicles' braking efficiency, ensuring safety and reliability on the road. For genuine Bendix OEM parts, Source One Parts Center is the best place to shop, providing top-quality components for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
15 CFM
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
92 mm
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Governor Port
E-Type Unloader
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Coolant Inlet Port
Front
Compressor Manufacturer
Holset
Engine Model
L10 / NT
Air Inlet Port
Left (Threaded)
Governor Included
No
Discharge Air Port
Rear (Threaded)
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Country of Origin
United States
Cooling
Water-Cooled
Weight
39.48 lb
