3558021X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

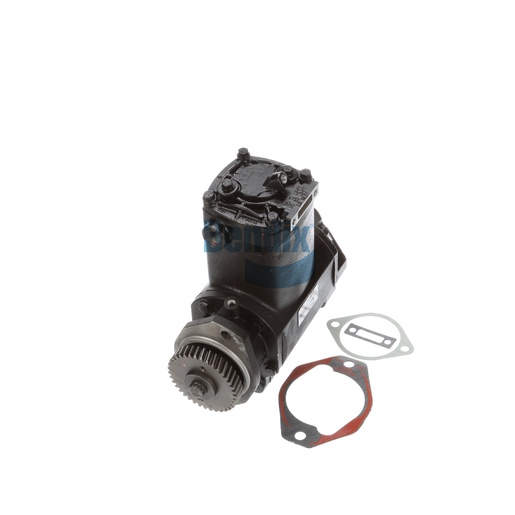

The Bendix Compressor is an essential part of your air brake system, delivering reliable performance and efficiency. Designed for compatibility with various commercial vehicles, this compressor boasts a robust water-cooled design to handle high temperatures and demanding conditions. Its bore size of 92 mm and high CFM rating ensure optimal air flow, crucial for effective braking. Weighing 20.9 kg, this compressor is built to last, providing the reliability you need in your fleet. The compressor is engineered for easy installation with standard mounting options, making it a practical choice for maintenance. When sourcing genuine Bendix OEM parts, look to Source One Parts Center for the best selection and quality.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
15 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92 mm
Engine Model
C Series
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Governor Port
E-Type Unloader
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Discharge Air Port
Front (Threaded)
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Coolant Inlet Port
Rear
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
45.99 lb
