FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

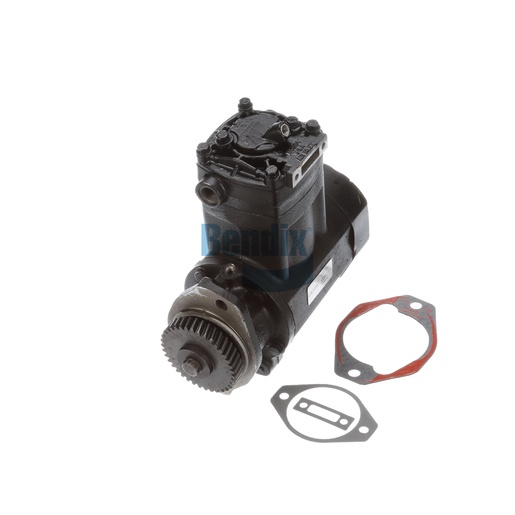

The Compressor is a crucial component in the braking system of commercial vehicles, responsible for generating compressed air necessary for the operation of air brakes. This high-performance compressor is designed to withstand the rigors of heavy-duty applications, featuring a robust construction that ensures reliability and longevity. With a displacement of 13.2 CFM at 1250 RPM, it provides optimal air supply for effective brake operation, enhancing vehicle safety and performance. The water-cooled design ensures efficient operation even in demanding conditions, making it a practical choice for fleet operators. By investing in top-quality components like the Compressor, operators can significantly improve the reliability of their braking systems. Source One Parts Center is your top destination for genuine Bendix OEM parts, offering exceptional quality and service.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
13.2 CFM
Number of cylinders
2
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Model
C Series
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Governor Port
E-Type Unloader
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Discharge Air Port
Front (Threaded)
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Coolant Inlet Port
Rear
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
45.99 lb
