FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

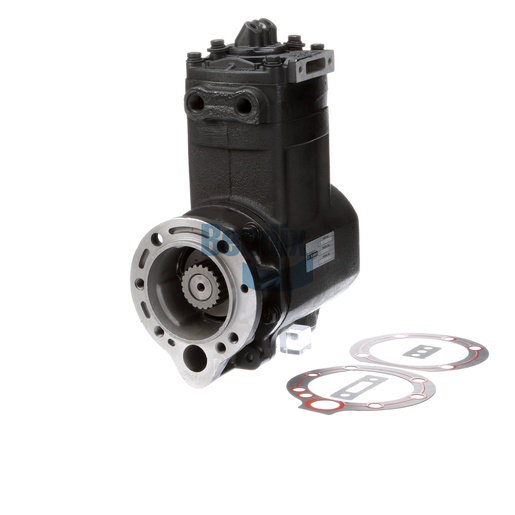

The Bendix Compressor is engineered for superior performance in air brake systems, providing reliable air supply for commercial vehicles. This compressor features a water-cooled design, ensuring efficient operation under high-demand conditions. With a bore size of 92.1 mm and a maximum operating temperature of 200 °F (93 °C), it is built for durability and reliability, making it suitable for various heavy-duty applications. Weighing 18.9 kg (41.58 lb), it is designed for ease of installation, ensuring minimal downtime during maintenance. This compressor plays a critical role in maintaining optimal air pressure levels within the braking system, enhancing both safety and performance. Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
13.2 CFM
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Governor Port
E-Type Unloader
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Coolant Inlet Port
Front
Compressor Manufacturer
Holset
Engine Model
NT
Governor Included
No
Discharge Air Port
Rear (Threaded)
Air Inlet Port
Right
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Country of Origin
United States
Cooling
Water-Cooled
Weight
41.58 lb
