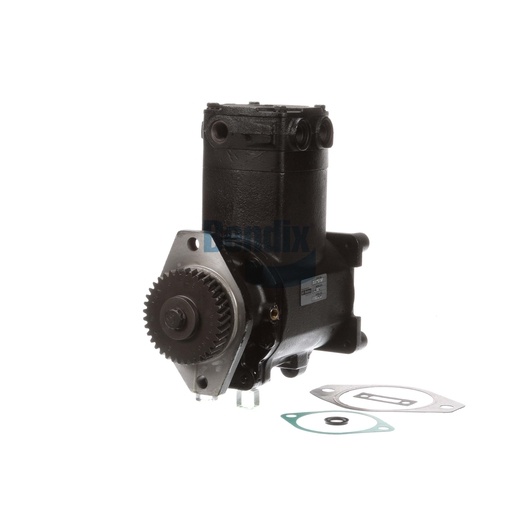

3558050X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix compressor is engineered for exceptional performance in air brake systems, providing the necessary air pressure required for safe and efficient braking. With a net weight of 21.5 kg, this compressor is designed for durability and reliability, ideal for heavy-duty applications. Its water-cooled design ensures optimal performance, while the engine oil feed lubrication keeps the compressor running smoothly under demanding conditions. Featured with a gear-driven compressor type, it offers efficient air delivery, ensuring your braking system operates effectively when you need it most. For those looking to enhance their vehicle's braking performance, the Bendix compressor is an essential choice. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
15 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92 mm
Engine Model
B Series
Engine Manufacturer
Cummins
Lubrication
Engine Oil Feed
Thru-Drive Mounting Type
Flange - 2 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
47.49 lb
