3558051X

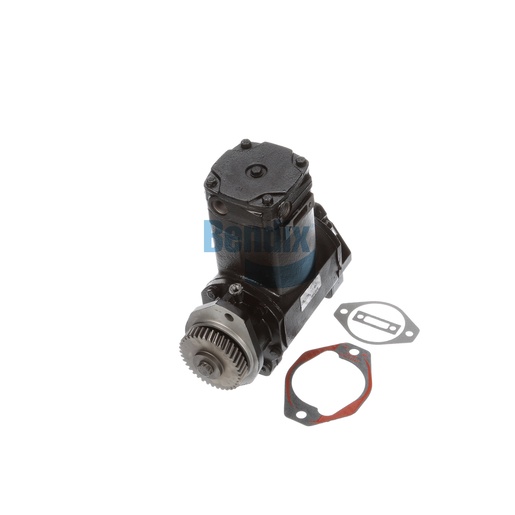

Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Engineered for reliability and efficiency, the compressor is a pivotal part of your vehicle's air brake system, ensuring the delivery of compressed air essential for effective braking. With a water-cooled design and a bore size of 92 mm, this compressor is built to withstand the rigors of heavy-duty truck applications, providing consistent performance under pressure. Its robust construction guarantees longevity, making it a valuable investment for fleet maintenance. The compressor's design allows for quick installation and seamless integration into your air brake system, minimizing downtime and ensuring your vehicle remains roadworthy. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, offering high-quality components tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
15 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92 mm
Engine Model
C Series
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Discharge Air Port
Front (Threaded)
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Coolant Inlet Port
Rear
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
48.48 lb
