3558052X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

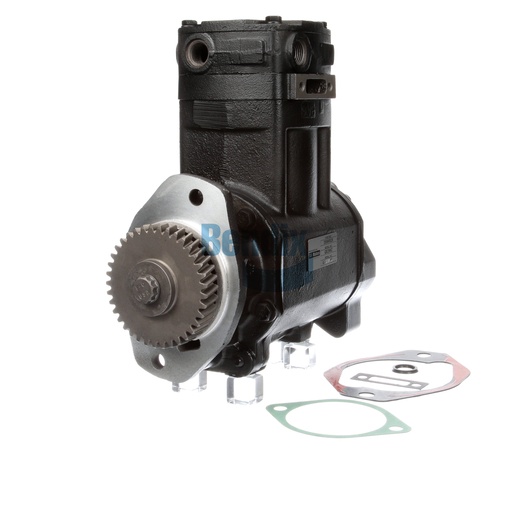

Upgrade your air braking system with the Bendix compressor, known for its reliability and efficiency in delivering compressed air for braking applications. This water-cooled compressor features a robust design with a 92.1 mm bore size, ensuring powerful performance even under heavy loads. With a displacement of 13.2 CFM at 1250 RPM, it provides the necessary air pressure to ensure responsive braking, enhancing overall vehicle safety. Built with high-quality materials and rigorous manufacturing standards, this compressor is engineered for durability, making it an ideal choice for long-haul trucking. Its easy installation and compatibility with various engine models mean less downtime and a smoother operation for your fleet. Choose Source One Parts Center for your Bendix OEM parts and experience unparalleled service and quality.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
13.2 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Model
C Series
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Coolant Inlet Port
Rear
Discharge Air Port
Rear (Threaded)
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
53.2 lb
