3558074X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

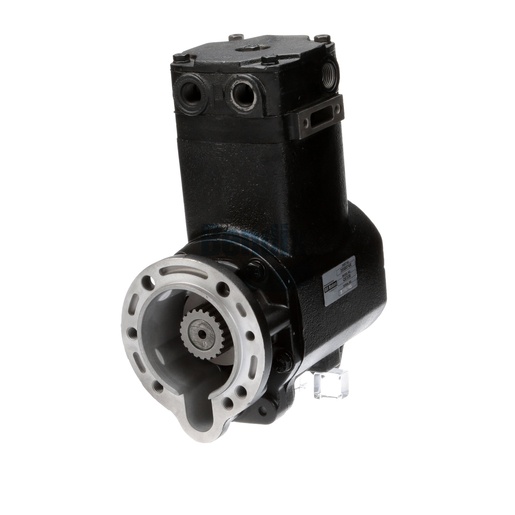

The Bendix Compressor is a versatile solution for enhancing the air brake system of various commercial vehicles. Designed to meet rigorous performance standards, this compressor guarantees efficient air supply, essential for reliable braking performance. With a net weight of 18.6 kg, it combines strength with efficiency, ensuring your vehicle can handle the demands of heavy loads and challenging driving conditions. Its innovative design minimizes maintenance needs while maximizing performance, making it a vital component for any commercial truck's braking system. Utilizing genuine Bendix OEM parts ensures your vehicle operates safely and effectively on the road. For the highest quality in Bendix parts, Source One Parts Center is the ultimate destination, providing a wide selection of trusted components tailored to meet the needs of your commercial vehicle.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
15 CFM
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
92 mm
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Coolant Inlet Port
Front
Discharge Air Port
Front
Compressor Manufacturer
Holset
Engine Model
L10 / N14
Governor Included
No
Air Inlet Port
Right
Compressor Drive Type
Spline
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Weight
40.98 lb
