3558095X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

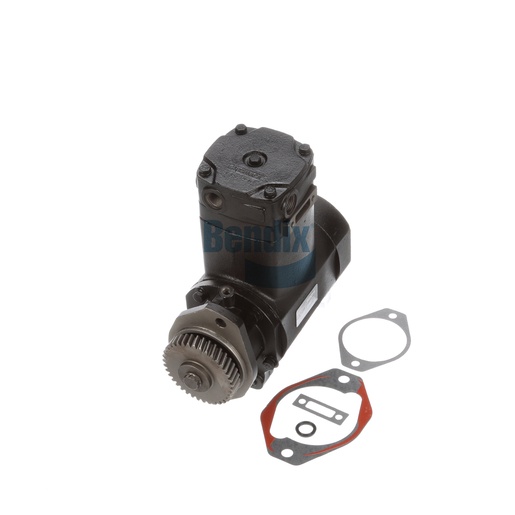

The Bendix Air Compressor is a key component in the air brake system of heavy-duty vehicles, responsible for generating the compressed air necessary for effective braking. This compressor features a robust, water-cooled design and is built to deliver optimal performance under demanding conditions. With a bore size of 92 mm and a capacity of 15 CFM at 1250 RPM, it ensures rapid air delivery, allowing for quick brake response. Designed for ease of installation, this compressor fits seamlessly into existing systems, minimizing downtime during replacements. Its durable construction guarantees longevity, making it a reliable choice for fleet operators. For high-quality, genuine Bendix components, Source One Parts Center is your best option, offering parts that ensure your vehicle operates safely and efficiently on the road.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
15 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92 mm
Engine Model
C Series
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Coolant Inlet Port
Rear
Discharge Air Port
Rear (Threaded)
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
48.48 lb
