FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

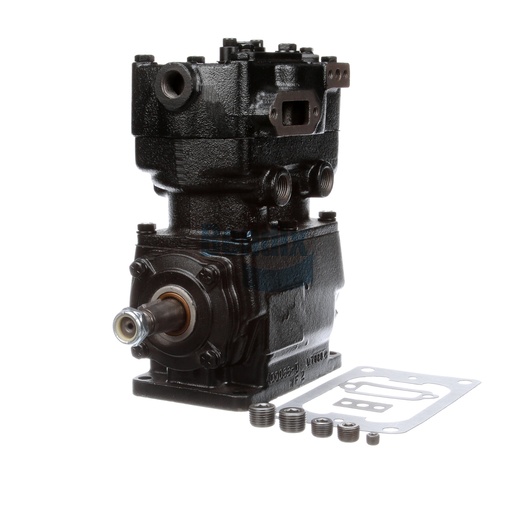

The Bendix Compressor is a powerful air compressor designed to meet the demanding needs of commercial vehicles. With a displacement of 13 CFM at 1250 RPM, this compressor is engineered for high efficiency, ensuring that your air brake system operates smoothly under various conditions. Its water-cooled design and durable construction make it an ideal choice for heavy-duty applications, providing reliable performance that you can count on day in and day out. Weighing 19.2 kg (42.35 lb), it features a compact design that simplifies installation while maintaining optimal airflow. This compressor is compatible with engines from leading manufacturers like Detroit Diesel, Ford, Mack, and Volvo. For those who prioritize quality and reliability in their vehicle's air systems, Bendix is the clear choice. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive top-quality components for your fleet.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
13 CFM
Width
150.0 mm (5.91 in)
Number of cylinders
2
Length
250.0 mm (9.84 in)
Height
350.0 mm (13.78 in)
Number of mounting holes
4
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Mounting Flange Location
Base Mount
Compressor Drive Type
Belt / Pulley
Engine Manufacturer
Detroit Diesel, Ford, Mack, Volvo
Lubrication
End Cover Oil Feed
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Weight
42.35 lb
