FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

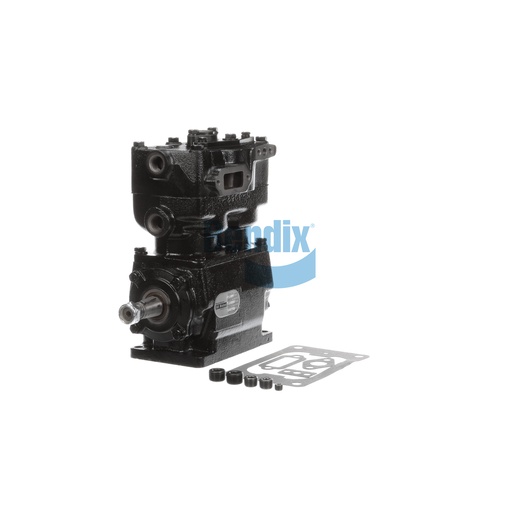

The Bendix Compressor is a high-performance air brake compressor, engineered to deliver reliable air pressure for your commercial vehicle's braking system. This robust compressor features an air-cooled design and is manufactured to meet the demands of heavy-duty applications, providing consistent performance and durability. With a bore size of 69.9 mm and a displacement of 13 CFM at 1250 RPM, it ensures efficient air delivery, critical for maintaining proper brake function. The compressor's design includes multiple mounting options, making installation straightforward and adaptable to various vehicle configurations. For those seeking genuine Bendix OEM parts, Source One Parts Center offers the best selection, ensuring you have access to top-quality components for your fleet.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Coolant Inlet Port
1/2-14 NPT
Governor Port
1/8-27 NPT
Width
121.7 mm (4.79 in)
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Length
226.8 mm (8.93 in)
Height
290.1 mm (11.42 in)
Number of mounting holes
4
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Cooling
Air-Cooled
Mounting Flange Location
Base Mount
Compressor Drive Type
Belt / Pulley
Lubrication
End Cover Oil Feed
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (1/2-14 NPT)
Country of Origin
United States
Engine Manufacturer
Various
Weight
44 lb
