FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

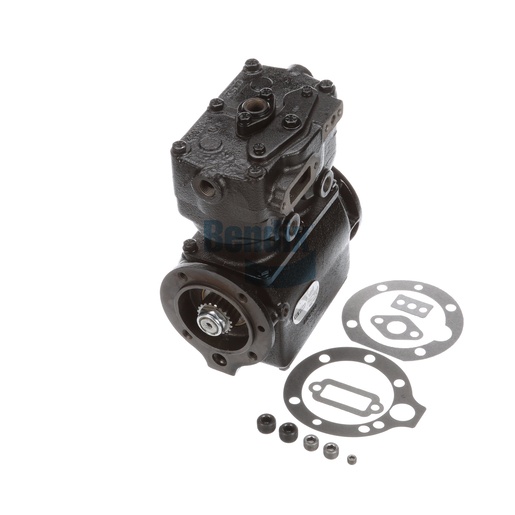

The Bendix Compressor is an integral part of your truck's air brake system, delivering consistent air pressure for optimal braking performance. Designed with a water-cooled system and a bore size of 69.9 mm, this compressor efficiently handles the demands of heavy-duty applications. Its gear-driven type ensures reliable operation, with a displacement of 13 CFM at 1250 RPM, making it suitable for robust braking needs. Weighing 21.6 kg, this compressor is built for durability and longevity, ensuring that your braking system remains functional under challenging conditions. Choose Source One Parts Center for your genuine Bendix parts, where quality and customer satisfaction are guaranteed.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Cummins
Mounting Flange Location
Double Flange
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Compressor Drive Type
Gear
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Weight
47.64 lb
