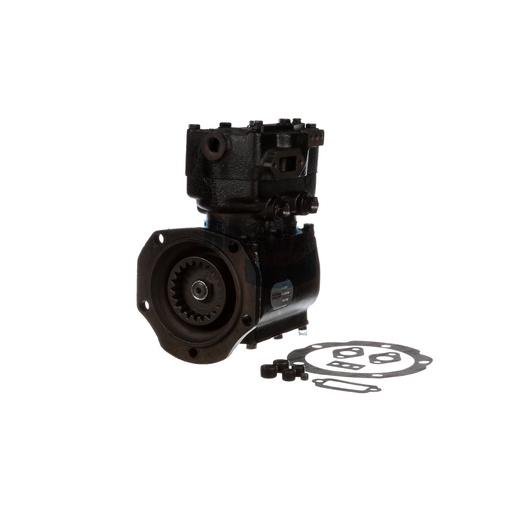

EL13050X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate your vehicle's performance with this high-efficiency air compressor, specifically designed for heavy-duty commercial applications. Featuring a robust design, this compressor provides reliable air pressure for your braking system, ensuring effective operation under demanding conditions. With a net weight of 48.19 pounds, it is built for durability, yet remains manageable for installation. The compressor is water-cooled and features a displacement of 13 CFM at 1250 RPM, making it an efficient choice for maintaining optimal air pressure. This component is essential for ensuring your vehicle's braking system operates smoothly and effectively. Choose genuine Bendix parts for unmatched reliability. Source One Parts Center is your trusted source for authentic Bendix OEM parts, ensuring your vehicle is equipped with the highest quality components.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Mounting Angle
0°
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Number of mounting holes
4
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange (Detroit Diesel)
Compressor Drive Type
Gear (Internal)
Compressor Manufacturer
Midland
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
48.19 lb
