EL13051X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

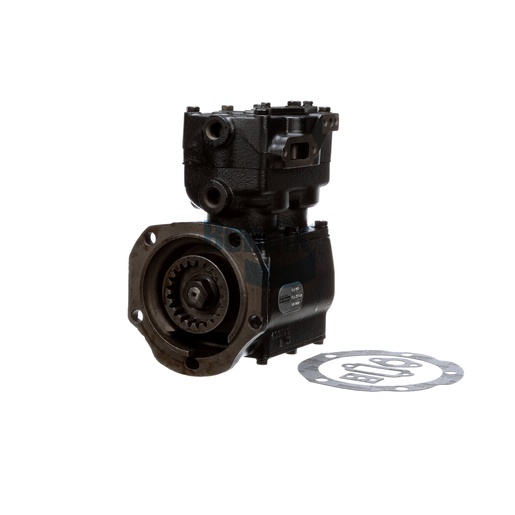

The Compressor is a vital component for your commercial vehicle's air brake system, providing the necessary air pressure for optimal braking performance. Engineered with precision, this water-cooled compressor features a bore size of 69.9 mm and is compatible with Detroit Diesel engines, specifically the 60 Series. With a displacement of 13 CFM at 1250 RPM, it efficiently delivers air to the braking system, ensuring responsive and effective stopping power. Its robust construction includes a geared internal drive and is designed for easy installation, minimizing downtime and maximizing operational efficiency. Operators can expect reliability and durability even under demanding conditions. For superior quality and performance, Source One Parts Center is your best choice for authentic Bendix OEM parts, ensuring your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Mounting Angle
0°
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Number of mounting holes
4
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange (Detroit Diesel)
Compressor Drive Type
Gear (Internal)
Coolant Inlet Port
Left
Compressor Manufacturer
Midland
Governor Included
No
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
47.2 lb
