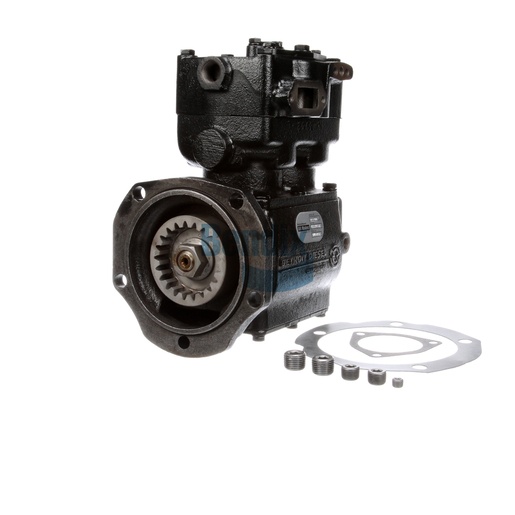

EL13053X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This advanced compressor is engineered for optimal performance in air brake systems, making it an essential component for commercial vehicles. With a net weight of 24.9 kg, this compressor is designed to provide reliable air pressure to your braking system, ensuring smooth operation in demanding conditions. Its robust construction and compatibility with various engine models make it an ideal choice for fleet operators seeking to enhance vehicle safety and efficiency. Whether for replacement or upgrade, this compressor is built to meet the highest standards of quality. For all your Bendix OEM parts needs, Source One Parts Center is the best destination for genuine components that deliver reliability and performance.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Mounting Angle
0°
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Thru-Drive Mounting Type
Flange - 3 hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Coolant Inlet Port
Left
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Weight
54.98 lb
