FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

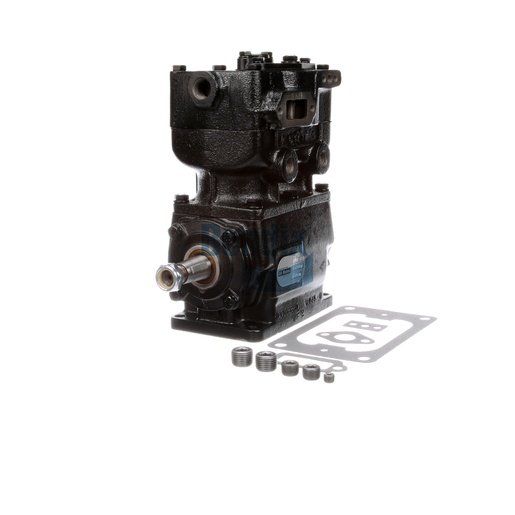

The Bendix Compressor is a vital part of your vehicle's air brake system, designed to deliver optimal air supply for effective braking performance. This compressor features a robust construction, ensuring reliability and durability even under heavy usage conditions. Weighing 19.1 kg, it is engineered to provide excellent performance with a displacement of 13 CFM at 1250 RPM, making it suitable for a wide range of applications. Manufactured in the United States, this compressor meets stringent quality standards, ensuring that it can withstand the demands of commercial transportation. By opting for genuine Bendix OEM parts, you can trust that your air brake system will function efficiently and safely. Choose Source One Parts Center for your Bendix parts, where we provide only authentic OEM products to ensure the best operational performance for your vehicles.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Number of mounting holes
4
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Mounting Flange Location
Base Mount
Compressor Drive Type
Belt / Pulley
Engine Manufacturer
Cummins, Detroit Diesel
Lubrication
End Cover Oil Feed
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Weight
42.04 lb
