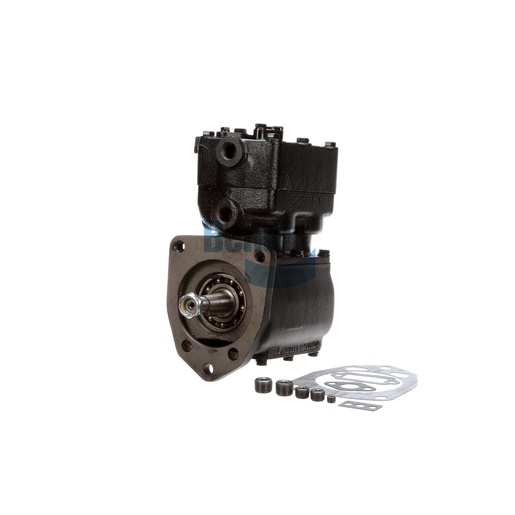

EL13081X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Compressor is a key component of your vehicle's air brake system, delivering the vital air supply necessary for optimal brake operation. Designed for durability and efficiency, this water-cooled compressor features a bore size of 69.9 mm and is engineered to provide a high air output of 13 CFM at 1250 RPM. Its robust construction ensures reliability, making it ideal for heavy-duty applications. By investing in this genuine Bendix compressor, you enhance the performance of your braking system, ensuring safe and effective stops under all conditions. Regular maintenance and timely replacement of compressors are essential for keeping your vehicle's air brake system functioning at its best. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicles.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Coolant Inlet Port
1/2-14 NPT
Discharge Air Port
1/2-14 NPT
Governor Port
1/8-27 NPT
Displacement (CFM at 1250 RPM)
13 CFM
Width
138.2 mm (5.44 in)
Number of cylinders
2
Length
287.3 mm (11.31 in)
Number of mounting holes
3
Height
304.8 mm (12.0 in)
Engine Model
3406B
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Caterpillar
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange, Front
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Side
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Cooling
Water-Cooled
Weight
47.3 lb
