EL13100X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

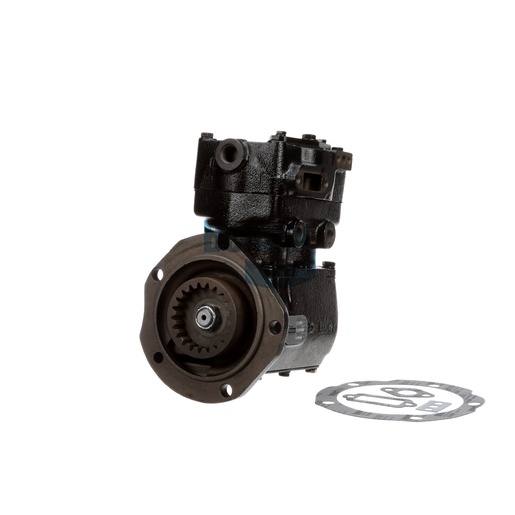

The Bendix Compressor is engineered for optimal performance in commercial vehicles, featuring a robust design that ensures reliable air supply for your braking system. With a bore size of 69.9 mm and a displacement of 13 CFM at 1250 RPM, it delivers efficient air compression, essential for maintaining air brake systems. This water-cooled compressor is specifically designed for Detroit Diesel engines, providing a perfect fit for various applications. Its internal gear drive guarantees smooth operation, while the four mounting holes ensure secure installation, even under heavy use. The compressor is built to withstand extreme temperatures, making it ideal for various climates and conditions. When you choose this Bendix Compressor, you're investing in a product that enhances the safety and performance of your vehicle, ensuring you stay on the road longer. Source One Parts Center is your top choice for genuine Bendix OEM parts, delivering quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
13 CFM
Number of cylinders
2
Number of mounting holes
4
Mounting Angle
50°
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange (Detroit Diesel)
Compressor Drive Type
Gear (Internal)
Compressor Manufacturer
Midland
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
47.25 lb
