EL13112X

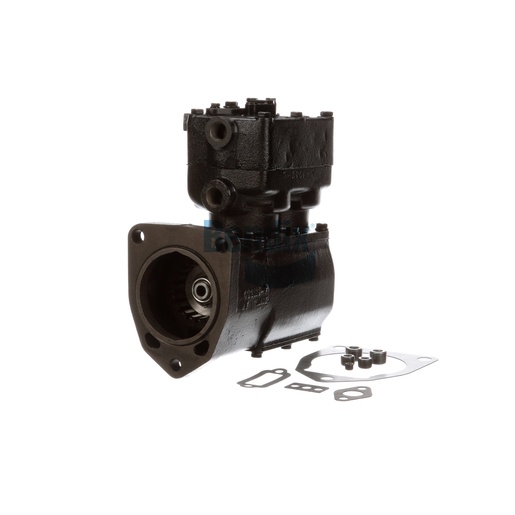

Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Compressor is an integral part of your truck's air brake system, designed to deliver reliable and efficient performance. This model is built for heavy-duty applications, featuring advanced engineering that ensures consistent air pressure for effective braking. Weighing 23.1 kg (51.0 lb), it is equipped with high-quality materials that enhance durability and longevity, making it ideal for commercial vehicles operating under demanding conditions. The compressor's water-cooled design helps maintain optimal operating temperatures, further extending its lifespan. By choosing this compressor, you ensure your vehicle maintains high performance and safety standards. Source One Parts Center is the best source for genuine Bendix OEM parts, guaranteeing reliability and quality for your vehicle's needs.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Coolant Inlet Port
1/2-14 NPT
Discharge Air Port
1/2-14 NPT
Governor Port
1/8-27 NPT
Displacement (CFM at 1250 RPM)
13 CFM
Width
137.9 mm (5.43 in)
Number of cylinders
2
Length
294.1 mm (11.58 in)
Number of mounting holes
3
Height
304.8 mm (12.0 in)
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Lubrication
Crankshaft End Oil Feed
Mounting Flange Location
Flange (Extended)
Engine Manufacturer
Mack
Compressor Manufacturer
Midland
Governor Included
No
Compressor Drive Type
Spline
Crankshaft Drive Type
Threaded
Cooling
Water-Cooled
Weight
51 lb
