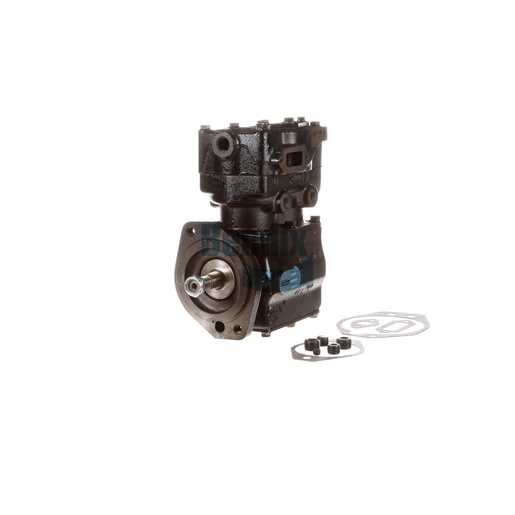

EL13280X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix compressor is a vital part of your air brake system, providing the necessary airflow to ensure peak braking performance. Designed for compatibility with Caterpillar engine models, this compressor features a water-cooled design and delivers an impressive 13 CFM at 1250 RPM, ensuring your braking system is always ready to perform. Weighing 22.7 kg, it is built for durability and reliability, making it a perfect fit for commercial vehicles. Its innovative design includes a threaded crankshaft drive type and multiple mounting options, allowing for easy installation and maintenance. The robust construction of this compressor is ideal for heavy-duty applications, providing the performance you expect from Bendix. For genuine Bendix OEM parts, Source One Parts Center is your go-to destination, dedicated to keeping your commercial vehicle's braking system in optimal condition.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Coolant Inlet Port
1/2-14 NPT
Discharge Air Port
1/2-14 NPT
Governor Port
1/8-27 NPT
Displacement (CFM at 1250 RPM)
13 CFM
Width
194.6 mm (7.66 in)
Number of cylinders
2
Number of mounting holes
2
Length
299.7 mm (11.8 in)
Mounting Angle
31.5°
Engine Model
3126
Height
317.8 mm (12.51 in)
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Caterpillar
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange, Front
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Compressor Drive Type
Shaft
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Weight
50.1 lb
