FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

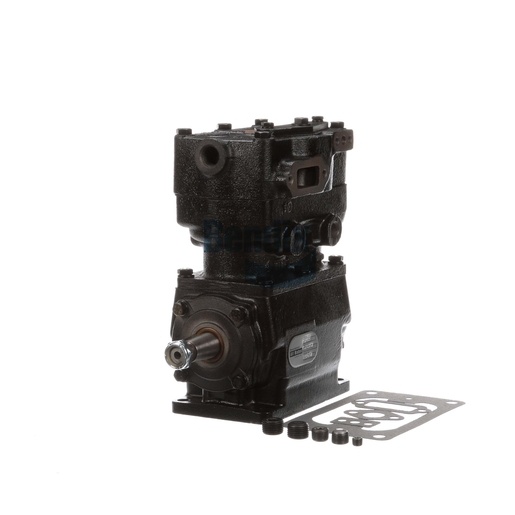

The Bendix Compressor is engineered for peak performance in commercial vehicles, providing essential air pressure for braking systems and other pneumatic applications. This water-cooled compressor boasts a bore size of 69.9 mm and delivers a displacement of 16.1 CFM at 1250 RPM, ensuring optimal air supply under various operating conditions. Its belt-driven design allows for easy integration into different engine types, making it a versatile choice for fleet maintenance. The durable construction and efficient performance contribute to improved safety and reliability on the road, while the straightforward installation process minimizes downtime. Choosing this compressor means investing in quality and dependability. Source One Parts Center is the ideal place to find genuine Bendix OEM parts, ensuring you receive top-tier components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
16.1 CFM
Number of cylinders
2
Number of mounting holes
4
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Mounting Flange Location
Base Mount
Compressor Drive Type
Belt / Pulley
Lubrication
End Cover Oil Feed
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Engine Manufacturer
Various
Cooling
Water-Cooled
Weight
43.3 lb
