EL16050X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

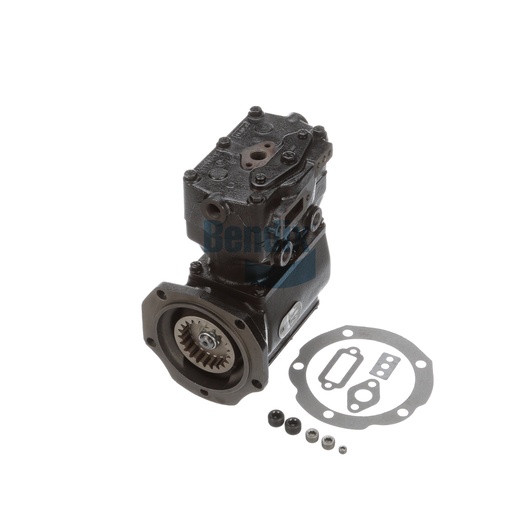

The Bendix Compressor is a vital component for your commercial vehicle's air brake system, designed to deliver reliable performance under heavy-duty conditions. This water-cooled compressor, weighing 22.6 kg, features a robust design with advanced engineering to ensure efficient air production for braking applications. Its compact dimensions make it suitable for a variety of vehicles, while the high-quality materials used in its construction ensure longevity and reliability. The compressor's innovative features, such as efficient lubrication and easy installation, make it a top choice for fleet maintenance. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted partner, ensuring that you receive authentic components for optimal vehicle performance.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Mounting Angle
0°
Displacement (CFM at 1250 RPM)
16.1 CFM
Number of cylinders
2
Number of mounting holes
4
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Weight
49.74 lb
