EL16051X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

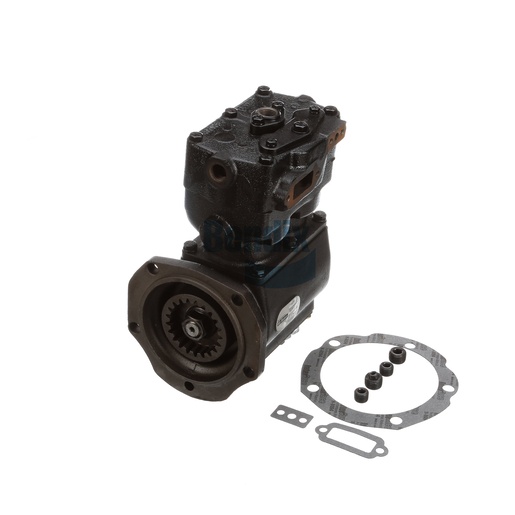

The Bendix Compressor is a high-efficiency air compressor that plays a critical role in the air brake systems of commercial trucks. Designed to deliver a reliable supply of compressed air, this compressor is engineered for performance and durability, making it an essential component for heavy-duty applications. Weighing 20.4 kg, it features a robust design that ensures long-lasting performance even in demanding conditions. The water-cooled system aids in maintaining optimal operating temperatures, preventing overheating and potential failures. With a displacement of 16.1 CFM at 1250 RPM, it provides ample air supply for effective brake operation, enhancing the safety and reliability of your vehicle. Source One Parts Center is committed to providing authentic Bendix parts, ensuring that you have the best components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Mounting Angle
0°
Displacement (CFM at 1250 RPM)
16.1 CFM
Number of cylinders
2
Number of mounting holes
4
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear (Internal)
Coolant Inlet Port
Left
Compressor Manufacturer
Midland
Governor Included
No
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
45 lb
