EL16072X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

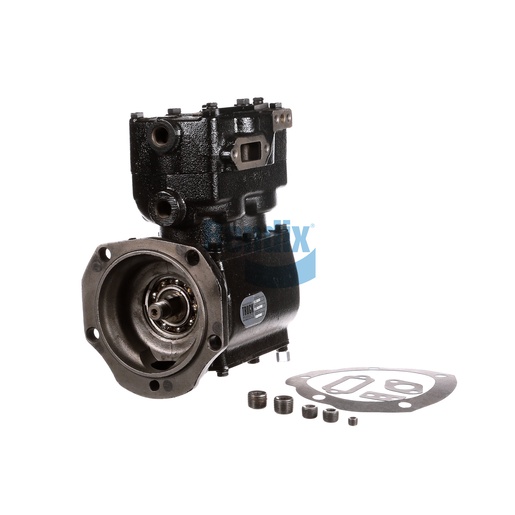

The Bendix Compressor is a crucial component for any commercial vehicle, delivering reliable air supply for braking and other systems. This water-cooled compressor features a bore size of 69.9 mm and a displacement of 16.1 CFM at 1250 RPM, ensuring optimal performance under demanding conditions. Designed specifically for Detroit Diesel engines, it has a durable construction with a gear-driven design, allowing for efficient power transfer and reduced wear. The compressor is engineered to provide consistent air pressure, enhancing braking efficiency and overall vehicle safety. With an easy installation process and compatibility with various makes, this compressor is a smart investment for fleet operators looking to maintain the reliability of their vehicles. Trust Source One Parts Center for genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
16.1 CFM
Number of cylinders
2
Number of mounting holes
4
Mounting Angle
4°
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange (Detroit Diesel)
Compressor Drive Type
Gear (Internal)
Coolant Inlet Port
Left
Compressor Manufacturer
Midland
Governor Included
No
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
45 lb
