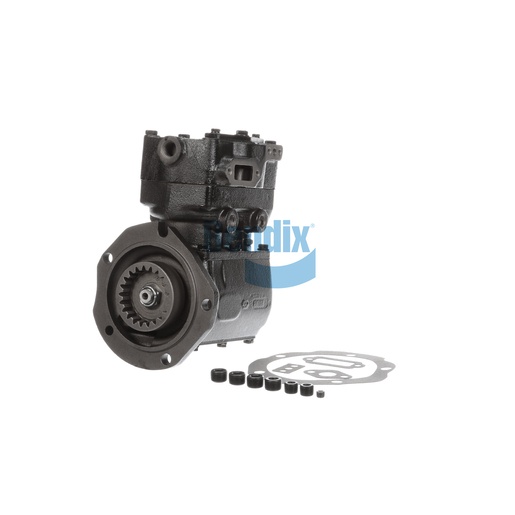

EL16100X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate your vehicle's braking efficiency with the Bendix compressor, engineered for demanding commercial applications. This compressor features a displacement of 16.1 CFM at 1250 RPM, ensuring quick and efficient air delivery to your braking system. Designed with durability in mind, it is compatible with various engine models and configurations, making it a versatile choice for fleet operators. Weighing 21.2 kg, this robust compressor is built to withstand the challenges of heavy-duty use, ensuring reliable performance and longevity even in tough conditions. Bendix is synonymous with quality and innovation in the commercial vehicle industry. Source One Parts Center is your premier destination for genuine Bendix OEM parts, providing you with the confidence that your vehicles are equipped with top-notch components.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
16.1 CFM
Number of cylinders
2
Number of mounting holes
4
Mounting Angle
4°
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
End Cover Oil Feed
Mounting Flange Location
Flange (Detroit Diesel)
Compressor Drive Type
Gear (Internal)
Compressor Manufacturer
Midland
Governor Included
No
Air Inlet Port
Right
Coolant Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
not relevant
Weight
46.74 lb
