EL16111X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

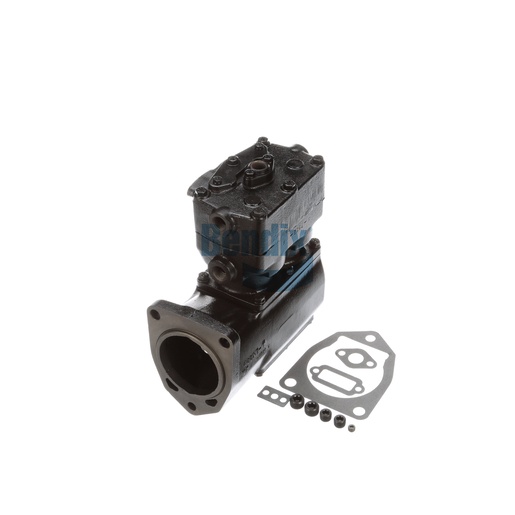

The Bendix Compressor is a highly efficient air compressor designed to meet the demanding needs of commercial vehicles. Built with precision and reliability in mind, this compressor provides a powerful 16.1 CFM displacement at 1250 RPM, ensuring that your air brake systems maintain optimal pressure and performance during operation. The water-cooled design enhances the compressor's durability and efficiency, while its robust construction withstands the rigors of daily use. With a net weight of 22.6 kg, this compressor is engineered for easy installation and longevity, making it an ideal choice for maintenance-conscious operators. Whether you're running a fleet of trucks or a single vehicle, investing in a Bendix Compressor guarantees reliable air supply, reducing the risk of breakdowns and enhancing overall safety on the road. Source One Parts Center is the ultimate source for authentic Bendix OEM parts, providing peace of mind with every purchase.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Displacement (CFM at 1250 RPM)
16.1 CFM
Number of cylinders
2
Number of mounting holes
3
Engine Model
6-Cylinder (Inline)
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Lubrication
Crankshaft End Oil Feed
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Air Inlet Port
Left
Coolant Inlet Port
Left
Engine Manufacturer
Mack
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Flange)
Country of Origin
United States
Cooling
Water-Cooled
Weight
49.78 lb
