EL16312X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

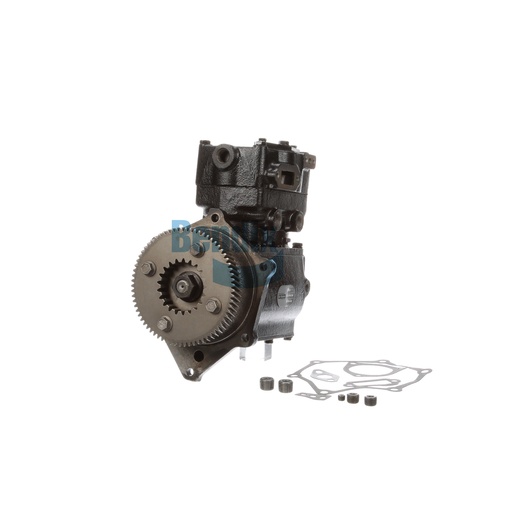

The Bendix Compressor is a high-performance component designed to meet the demanding air brake requirements of commercial vehicles. This compressor features a water-cooled design and is engineered with precision to deliver an impressive 16.1 CFM at 1250 RPM, making it ideal for heavy-duty applications. Weighing 31.5 kg, it is robust enough to withstand the rigors of the road while providing reliable air supply for braking systems. The compressor is designed for easy installation and compatibility with various engine models, ensuring that your vehicle's braking system operates smoothly and efficiently. Its high-quality construction guarantees long-lasting performance, making it a vital part of your vehicle's safety and functionality. For genuine Bendix OEM parts, Source One Parts Center is the best choice for ensuring your commercial vehicles are equipped with high-quality components.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Coolant Inlet Port
1/2-14 NPT
Discharge Air Port
1/2-14 NPT
Governor Port
1/8-27 NPT
Displacement (CFM at 1250 RPM)
16.1 CFM
Width
180.3 mm (7.1 in)
Number of cylinders
2
Length
251.5 mm (9.9 in)
Thru-Drive Shaft Connector
3-Prong
Height
309.6 mm (12.19 in)
Number of mounting holes
6
Engine Model
60 Series
Bore Size
69.9 mm
Harmonized System (HS) Code
841480
Engine Manufacturer
Detroit Diesel
Lubrication
Engine Oil Feed
Thru-Drive Mounting Type
Flange - 3 hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Midland
Governor Included
No
Crankshaft Drive Type
Spline
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
69.35 lb
