KN7010X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

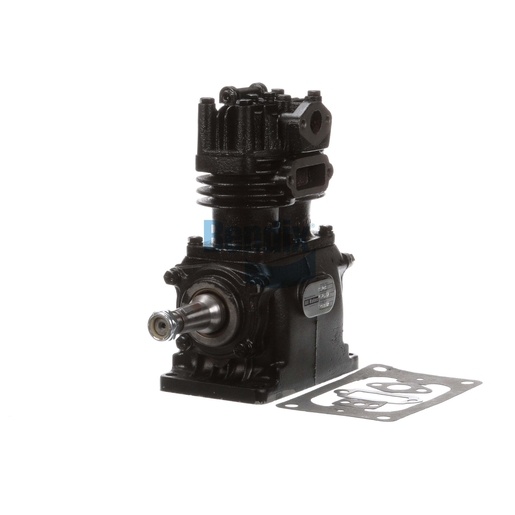

The Bendix compressor is a high-performance air compressor designed specifically for commercial vehicles. This air-cooled unit features a robust design with two cylinders, delivering reliable air pressure to the braking system. Its compact size and efficient operation make it a suitable choice for various truck models, ensuring consistent performance even under demanding conditions. The compressor is engineered for easy installation and maintenance, reducing downtime and enhancing productivity. For high-quality Bendix OEM parts, Source One Parts Center is the best place to source your needs, providing exceptional service and support.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
2
Number of mounting holes
4
Harmonized System (HS) Code
841480
Cooling
Air-Cooled
Mounting Flange Location
Base Mount
Lubrication
Base or End Cover Oil Feed
Compressor Drive Type
Belt / Pulley
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Discharge Air Port
Right (Flange)
Crankshaft Drive Type
Threaded
Country of Origin
United States
Engine Manufacturer
Various
Weight
27.09 lb
