KN85020X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

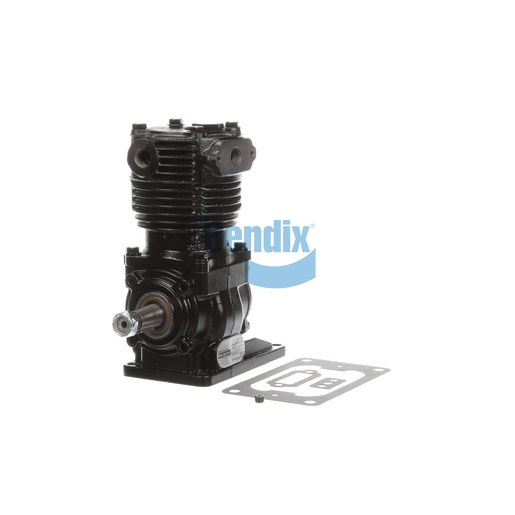

The Bendix Compressor is an essential component for ensuring the efficient operation of air brake systems in commercial vehicles. Designed with advanced engineering, this compressor features a robust single-cylinder design with a bore size of 80 mm and an impressive displacement of 8.5 CFM at 1250 RPM, making it capable of delivering consistent air pressure for optimal braking performance. Its air and water-cooled operation ensures durability and reliability even under demanding conditions. The compressor's user-friendly design includes a top discharge air port and a base mount for easy installation, making it a practical choice for fleet maintenance. With a net weight of just over 22 pounds, this lightweight yet powerful compressor offers significant advantages in terms of handling and efficiency. When it comes to sourcing genuine Bendix OEM parts for your commercial vehicles, Source One Parts Center stands out as the premier destination for quality and reliability.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Number of mounting holes
4
Displacement (CFM at 1250 RPM)
8.5 CFM
Bore Size
80 mm
Harmonized System (HS) Code
841480
Cooling
Air / Water-Cooled
Mounting Flange Location
Base Mount
Compressor Drive Type
Belt / Pulley
Lubrication
End Cover Oil Feed
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Threaded)
Country of Origin
United States
Engine Manufacturer
Various
Weight
22.29 lb
