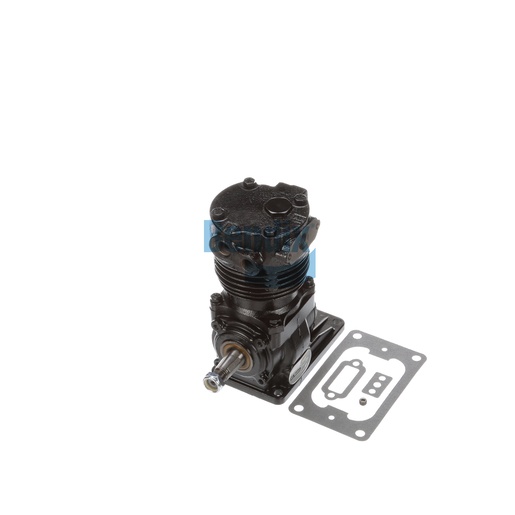

KN86020X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Compressor is a vital component for air brake systems, designed to deliver reliable air pressure for optimal braking performance in commercial vehicles. With a net weight of 10.3 kg, this compressor features robust construction to withstand the demands of heavy-duty applications. Its air and water-cooled design ensures efficient operation, while the high displacement rate provides enhanced air supply for your braking system. This compressor is essential for maintaining the efficiency and safety of your vehicle under various driving conditions. With Source One Parts Center, you can trust that you are purchasing genuine Bendix OEM parts that ensure the highest quality and reliability for your truck's performance.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Number of mounting holes
4
Displacement (CFM at 1250 RPM)
8.5 CFM
Bore Size
80 mm
Harmonized System (HS) Code
841480
Cooling
Air / Water-Cooled
Mounting Flange Location
Base Mount
Compressor Drive Type
Belt / Pulley
Lubrication
End Cover Oil Feed
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Air Inlet Port
Right
Crankshaft Drive Type
Threaded
Discharge Air Port
Top (Threaded)
Country of Origin
United States
Engine Manufacturer
Various
Weight
22.69 lb
