KN86230X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

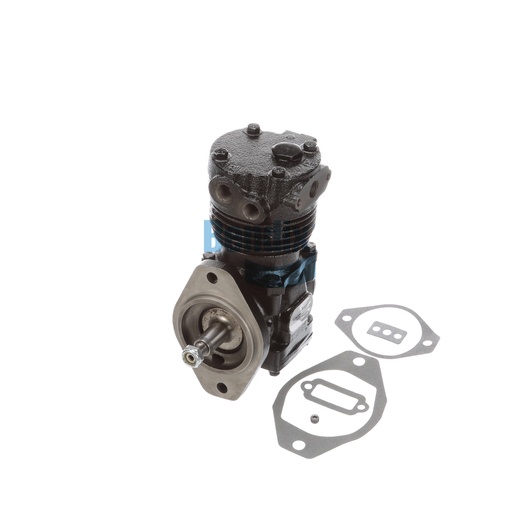

The Bendix Compressor is engineered for peak performance in air brake systems, providing reliable air pressure to ensure effective braking action. With a robust design that features a displacement of 8.5 CFM at 1250 RPM, this compressor is ideal for heavy-duty applications, delivering consistent and powerful air flow. Its water-cooled system is designed to handle high temperatures, while the end cover oil feed lubrication system ensures long-lasting operation. Built to meet the demands of commercial vehicles, this compressor is compatible with Cummins B Series engines and is specifically designed to provide efficient air supply for braking systems. The reliable performance of this compressor contributes to improved safety and reduced downtime. Source One Parts Center is committed to delivering authentic Bendix OEM parts, providing you with the quality and durability you need for your commercial vehicle.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Width
150.0 mm (5.91 in)
Number of mounting holes
2
Length
200.0 mm (7.87 in)
Height
300.0 mm (11.81 in)
Displacement (CFM at 1250 RPM)
8.5 CFM
Bore Size
80 mm
Harmonized System (HS) Code
841480
Engine Model
B Series
Engine Manufacturer
Cummins
Lubrication
End Cover or Side Port Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Midland
Drive Gear Included
No
Governor Included
No
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Weight
31.09 lb
