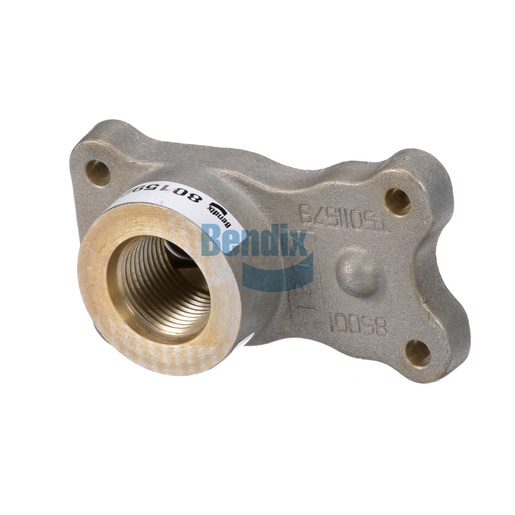

801592
Inlet Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inlet Check Valve from Bendix is an essential part of your air compressor system, ensuring that air flows in the correct direction while preventing backflow that can compromise performance. With a durable construction designed to withstand harsh conditions, this valve is ideal for maintaining the integrity of your air system. Weighing only 0.51 pounds, it is compact and easy to install, fitting seamlessly into your existing setup. Its reliable operation at temperatures ranging from -40°F to 200°F makes it a robust choice for various applications in commercial vehicles. Rely on Source One Parts Center for authentic Bendix OEM parts that guarantee quality and durability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-087: Check Valve - Air Dryer
Inlet Port
1 1/16-12 Straight Thread O-Ring Port (SAE J1926/1)
Height
103.1 mm (4.06 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
42.7 mm (1.68 in)
Width
59.1 mm (2.33 in)
Harmonized System (HS) Code
841490,848120
Outlet Port
Inlet Check Valve Stop
Country of Origin
Mexico
Mounting
Ø 7.0 MM ± 0.3 MM (4x)
Weight
0.51 lb
