804311

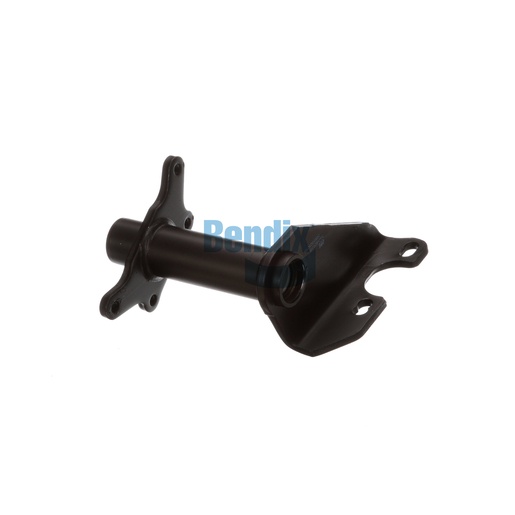

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed specifically to support advanced driver assistance systems, providing essential support for warning and collision mitigation technologies. Constructed in the United States, this bracket features a full arm style with nylon bushings, ensuring durability and effective operation under a range of conditions. Its dimensions and weight make it easy to integrate into various vehicle applications, enhancing the overall performance of your safety systems. The bracket assembly is essential for maintaining the integrity and alignment of crucial components in driver assistance systems. By choosing the Bendix Bracket Assembly, you invest in a product that promotes safety and reliability on the road. Source One Parts Center is your leading source for genuine Bendix OEM parts, ensuring you receive top-quality components that enhance vehicle safety and performance.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.99 lb
