804451

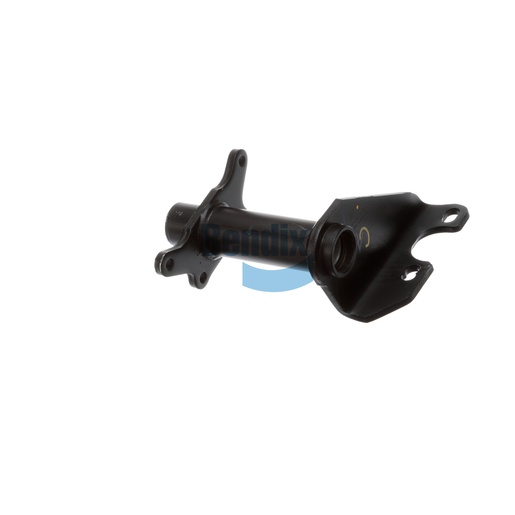

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a critical component designed to support various driver assistance systems, including warning and collision mitigation technologies. This assembly is engineered for durability, ensuring it can withstand the demanding conditions of commercial vehicle operations. Weighing 5.7 kg, it boasts a sturdy construction that provides reliable support for critical components, enhancing the overall performance of safety systems. Its design allows for easy installation, ensuring that your systems are correctly aligned and operational. The Bracket Assembly plays a vital role in ensuring the effectiveness of driver assistance features, contributing to safer driving experiences. When looking for genuine Bendix OEM parts, Source One Parts Center is the best choice, offering high-quality products and exceptional service.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.54 lb
