FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

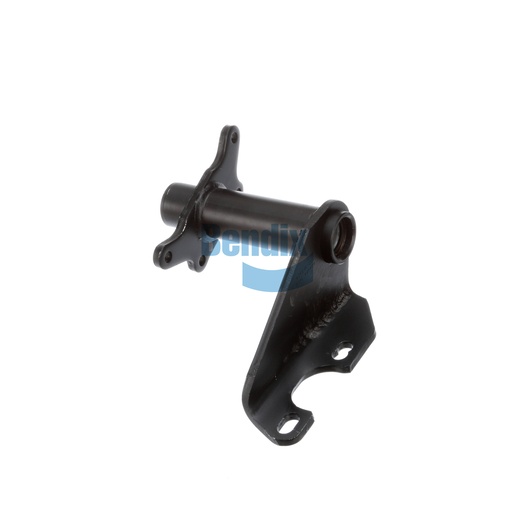

The Bendix Bracket Assembly is essential for mounting various components of the driver assistance system, particularly in warning and collision mitigation applications. This assembly is designed with a full arm style and features durable nylon bushings, ensuring stability and longevity under heavy use. The gusset angle of 108 degrees CCW adds to its structural integrity, making it a reliable choice for supporting your truck's advanced safety systems. With dimensions that allow for a perfect fit, this bracket assembly helps maintain the proper alignment and function of critical components, ensuring your vehicle operates safely and effectively. For those looking to enhance their truck's performance, Source One Parts Center is the premier destination for genuine Bendix OEM parts, delivering quality you can trust.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CCW
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
