FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

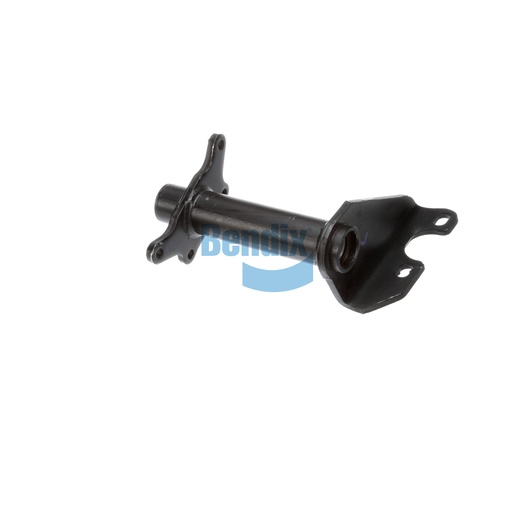

The Bracket Assembly from Bendix is an integral part of driver assistance systems, particularly in warning and collision mitigation applications. This assembly is crafted for durability, ensuring that it can withstand the demands of various commercial vehicle operations. Weighing 6.2 kg, it is designed to be robust yet manageable for easy installation and maintenance. The bracket assembly plays a critical role in securely supporting various sensors and systems that enhance vehicle safety and performance, making it an essential component for modern fleets. By choosing high-quality bracket assemblies, fleet operators can ensure that their vehicles are equipped with the latest safety technologies. Source One Parts Center is your best choice for genuine Bendix OEM parts, guaranteeing that you have access to top-tier components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.62 lb
