FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

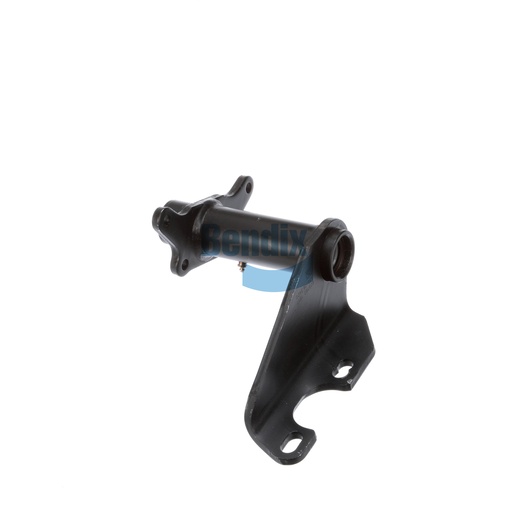

This Bracket Assembly is an essential component for Bendix Driver Assistance Systems, particularly in warning and collision mitigation applications. Constructed with a full arm style and equipped with nylon bushings, this assembly is designed for optimal durability and performance. Its dimensions and technical specifications ensure a perfect fit within the system, promoting effective operation of driver assistance features. Weighing just over 12 pounds and measuring 11.57 inches in length, it allows for straightforward installation while providing robust support. This genuine Bendix OEM part is manufactured in the United States, ensuring reliability in critical safety systems. For the best in genuine Bendix OEM parts, choose Source One Parts Center—the leading supplier for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.17 lb
