805945

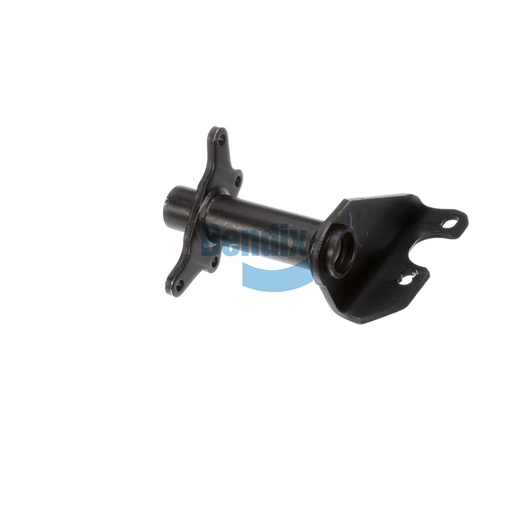

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component of driver assistance systems, particularly in warning and collision mitigation applications. Engineered for reliability, this assembly features a full arm style and nylon bushings, ensuring long-lasting performance in the most demanding environments. With its dimensions optimized for effective installation and a camshaft bracket angle of 45° CW, it integrates smoothly into various systems, enhancing the safety and functionality of your truck. Designed to withstand the rigors of commercial use, this bracket assembly supports critical components that contribute to advanced driver-assistance systems, ultimately improving overall vehicle safety. Trust Source One Parts Center as your go-to supplier for genuine Bendix OEM parts, ensuring that your commercial vehicles operate with the highest level of performance and safety.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
