805958

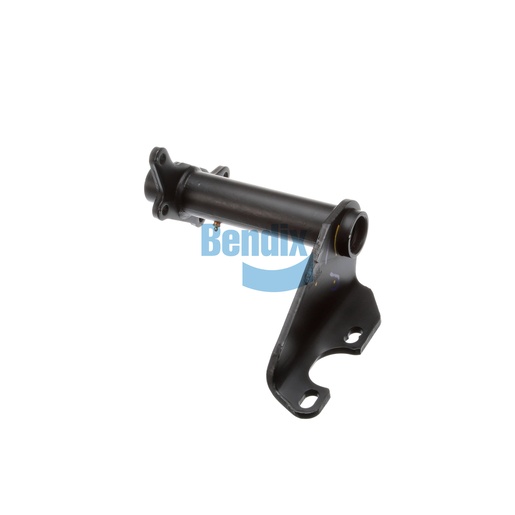

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for supporting the various components of your truck's braking system, ensuring they operate effectively under demanding conditions. This assembly features a full arm style with durable nylon bushings designed to reduce wear and prolong the lifespan of your braking components. Its robust construction ensures reliability, while its design allows for straightforward installation, making maintenance easier. With a length of 14.31 inches, this bracket assembly is engineered to fit seamlessly within your braking system, promoting optimal performance and safety. By investing in this high-quality component, you are enhancing the reliability of your vehicle’s braking system. Source One Parts Center is your premier destination for genuine Bendix OEM parts, guaranteeing quality and service you can trust.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
