805959

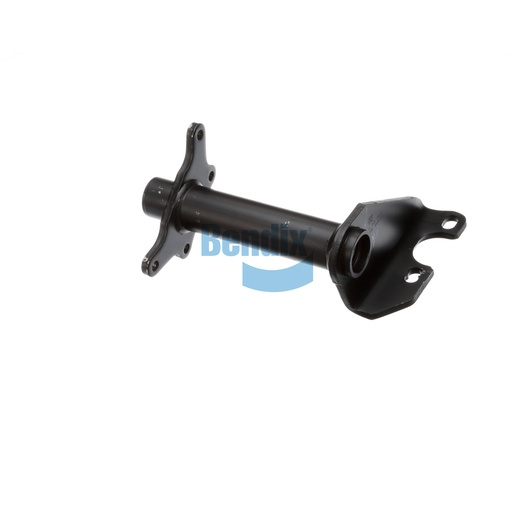

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Introducing the Bendix Bracket Assembly, a critical component designed for driver assistance systems to enhance braking and collision mitigation. This assembly is crafted with precision, featuring high-quality materials that provide durability and resilience in demanding conditions. With a net weight of 6.2 kg, it combines robust construction with manageable handling for easy installation. The assembly meets OEM specifications, ensuring compatibility with various vehicle models and systems. Designed for high-performance applications, this bracket assembly plays a crucial role in maintaining the integrity and functionality of the braking system. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, ensuring quality and reliability in every component.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.73 lb
