805960

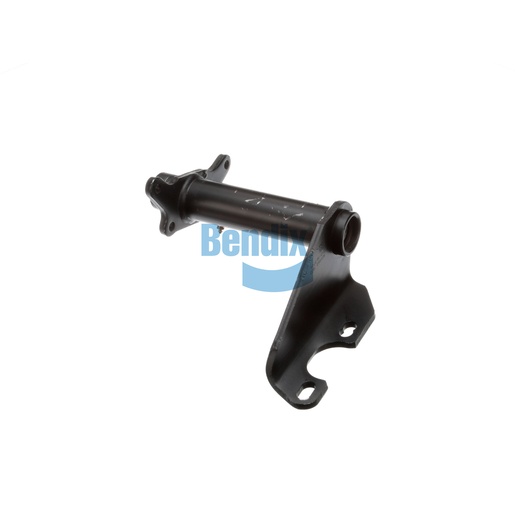

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential support structure for your braking system, ensuring that all components function effectively and reliably. This assembly is built to withstand the demanding conditions of commercial trucking, providing the necessary stability and support for various brake components. Its precision design allows for easy installation, making it straightforward to replace or upgrade as needed. By enhancing the overall performance of your braking system, the Bracket Assembly contributes to safer driving conditions and improved vehicle control. When it comes to sourcing reliable Bendix OEM parts, Source One Parts Center is your premier destination for quality, ensuring you receive authentic products designed to meet the demands of heavy-duty applications.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.09 lb
