806808

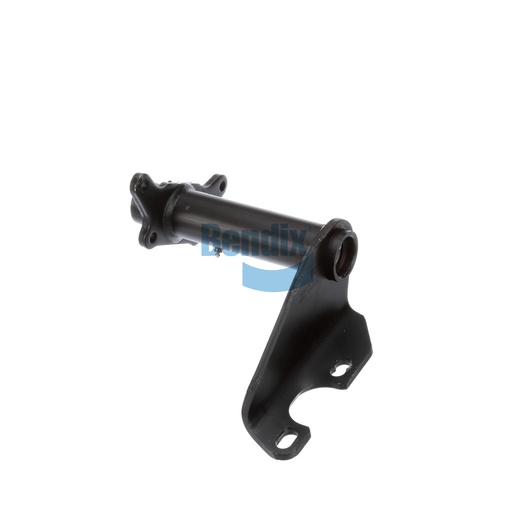

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is crucial for the support and alignment of driver assistance systems, particularly those focused on warning and collision mitigation. Constructed with durability in mind, this bracket is designed to withstand the demands of commercial driving conditions. Its design facilitates easy installation, which is vital for minimizing vehicle downtime during repairs. By ensuring that electronic components are securely mounted and properly aligned, this bracket contributes to the overall effectiveness of safety systems in your vehicle. When looking for reliable and high-quality parts, Source One Parts Center is your best option, providing access to genuine Bendix OEM parts for your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.18 lb
