807139

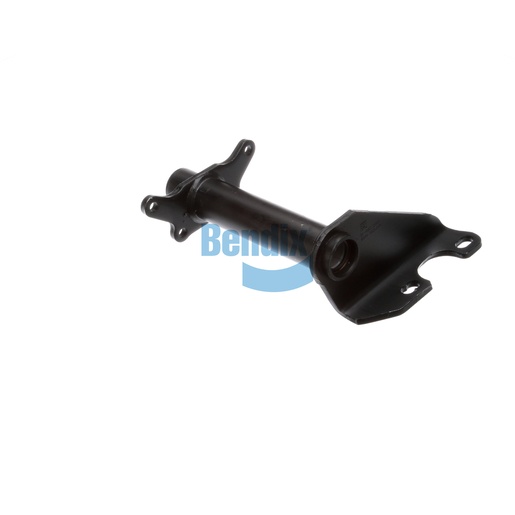

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component in driver assistance systems, designed to support the integration of advanced warning and collision mitigation technologies. With a full arm style and durable construction, this assembly ensures stability and reliability under various operational conditions. The inclusion of nylon bushings enhances its performance, contributing to the overall effectiveness of the safety systems. This bracket assembly is essential for maintaining the integrity of your vehicle's braking and safety features, ensuring optimal performance. For genuine Bendix OEM parts, including this essential bracket assembly, Source One Parts Center is the ideal choice, providing quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.62
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
372.0 mm (14.65 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.24 lb
