807160

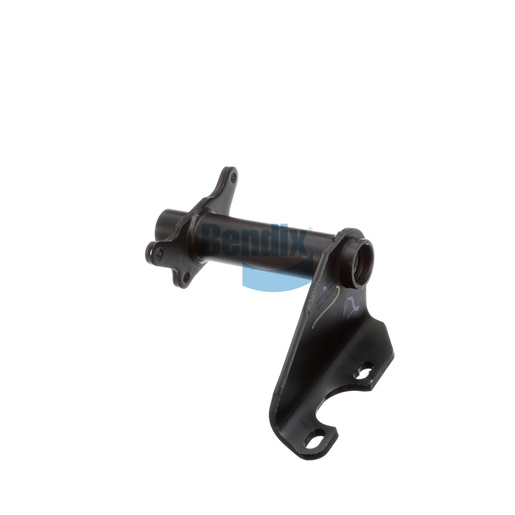

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is expertly designed to support advanced driver assistance systems, contributing to improved safety and performance in commercial vehicles. Constructed with high-quality materials, this assembly features nylon bushings that provide durability and resistance to wear. With a length of 342.0 mm and a net weight of 6.1 kg, it is engineered to withstand the rigors of daily use while ensuring the integrity of the systems it supports. Opt for genuine Bendix OEM parts from Source One Parts Center to ensure your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.49 lb
