K097658SC002
Display
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

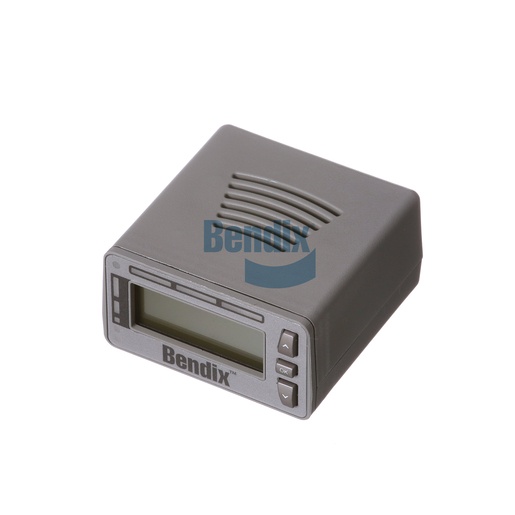

The Display unit from Bendix is an advanced driver interface designed to enhance safety through collision mitigation and warning systems in commercial vehicles. This unit boasts a robust design with an ingress protection rating of IP30, ensuring durability in various environments. Featuring a user-friendly interface and adjustable volume settings, it keeps drivers informed and alert, significantly improving road safety. With a compact size and lightweight construction, it integrates easily into any vehicle, enhancing its overall functionality. For those in need of reliable Bendix OEM parts, Source One Parts Center is your best source, offering high-quality components that meet stringent industry standards.
SPECIFICATIONS
VMRS
036-001-007: Display Unit - Driver, Collision Avoidance System
Length
110.0 mm (4.33 in)
Volume Adjustment
50%
CAN Baud Rate
500 Kilobaud
Height
51.0 mm (2.01 in)
Harmonized System (HS) Code
851220
Width
94.0 mm (3.7 in)
Wingman Range Adjustment
Disabled
Ingress Protection Rating
IP30
Connector Type
Molex H-DAC 64 Series 8-Way Unsealed Connector (Male)
Country of Origin
United States
Collision Mitigation Alerts
Unmuted
Weight
0.76 lb
