K113882SC001
Display
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

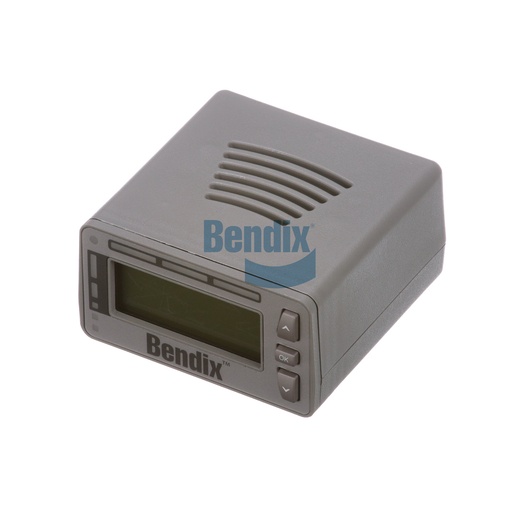

The Display unit is an integral part of the driver assistance system, providing vital information and alerts to enhance safety while on the road. Designed in the United States, this compact device boasts a high degree of functionality, allowing drivers to monitor their vehicle's performance and receive collision avoidance alerts effectively. With a weight of just 0.73 pounds and dimensions that fit comfortably within the driver’s line of sight, this display ensures that critical information is easily accessible without distractions. The unit features an IP30 ingress protection rating, making it suitable for use in various environments while maintaining durability. By incorporating this display into your vehicle, you enhance the driver's situational awareness, significantly reducing the risk of accidents. Source One Parts Center is the preferred source for genuine Bendix OEM parts, guaranteeing you receive high-quality and reliable components that support your vehicle's safety systems.
SPECIFICATIONS
VMRS
036-001-007: Display Unit - Driver, Collision Avoidance System
Length
110.0 mm (4.33 in)
Volume Adjustment
50%
CAN Baud Rate
500 Kilobaud
Height
51.0 mm (2.01 in)
Harmonized System (HS) Code
851220
Width
94.0 mm (3.7 in)
Wingman Range Adjustment
Disabled
Ingress Protection Rating
IP30
Connector Type
Molex H-DAC 64 Series 8-Way Unsealed Connector (Male)
Country of Origin
United States
Collision Mitigation Alerts
Unmuted
Weight
0.73 lb
