FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

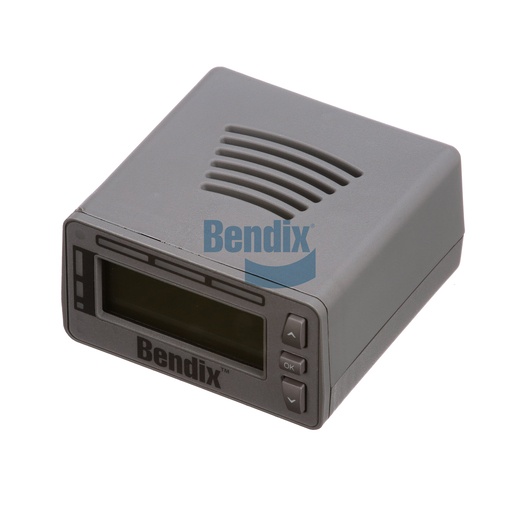

The Bendix Display is an essential component in modern commercial vehicle driver assistance systems, specifically designed for enhanced warning and collision mitigation. This unit features a 360° viewer, allowing drivers to have comprehensive visibility around their vehicle, significantly reducing blind spots and enhancing overall safety. With technical specifications such as a CAN baud rate of 250 kilobaud and an ingress protection rating of IP30, this display unit is built to withstand the rigors of commercial use. Its compact dimensions ensure it fits seamlessly within the truck's interior, while the easy-to-read interface provides critical information at a glance. Whether navigating busy highways or tight urban environments, this display helps drivers make informed decisions quickly, improving response times and reducing the likelihood of accidents. Source One Parts Center is your premier destination for purchasing genuine Bendix OEM parts, ensuring reliability and performance in every component.
SPECIFICATIONS
VMRS
036-001-007: Display Unit - Driver, Collision Avoidance System
Volume Adjustment
100%
Length
101.0 mm (3.98 in)
Width
120.0 mm (4.72 in)
CAN Baud Rate
250 Kilobaud
Height
70.0 mm (2.76 in)
Harmonized System (HS) Code
851220
Wingman Range Adjustment
Enabled
Ingress Protection Rating
IP30
Connector Type
Molex H-DAC 64 Series 8-Way Unsealed Connector (Male)
Country of Origin
United States
Collision Mitigation Alerts
Unmuted
Weight
0.73 lb
