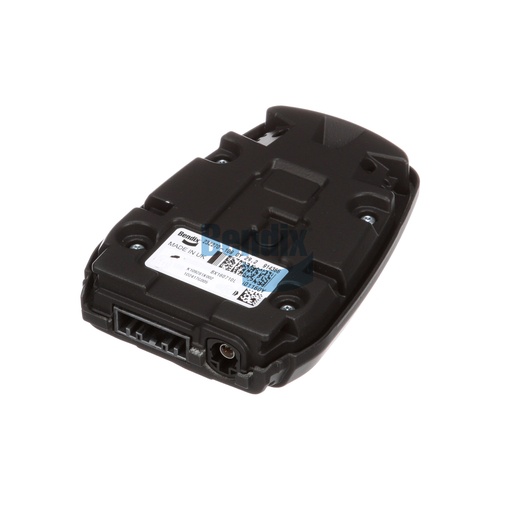

K109281SC002
Camera
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Forward-Looking Camera is a cutting-edge component of Bendix driver assistance systems, designed to enhance safety for commercial vehicle operators. This camera provides crucial visual information, allowing for advanced collision mitigation and awareness. With a camera angle of 29.2 degrees and a compact design, it can easily be integrated into various vehicle configurations. The unit features an integrated processor, ensuring real-time data processing for optimal performance. Its durable construction is built to withstand the rigors of the road, ensuring reliability in all conditions. For all your Bendix OEM parts needs, including this advanced Forward-Looking Camera, Source One Parts Center is the ultimate source for genuine, high-quality components.
SPECIFICATIONS
VMRS
036-001-019: Camera - Collision Avoidance System
Height
117.0 mm (4.61 in)
CAN Baud Rate
250 Kilobaud
Camera Angle
29.2°
Width
32.5 mm (1.28 in)
Length
85.0 mm (3.35 in)
Harmonized System (HS) Code
852580
Video Connector
Amphenol 4-Pin Connector HSD-NARP-C44-0 (Male)
Software Version
BX160710
ECU Type
Integrated Processor
Vehicle Connector
JST 9-Pin Connector SM09B-HCHK-TB (Male)
Country of Origin
United Kingdom
Application
Wingman Fusion
Weight
0.5 lb
