This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

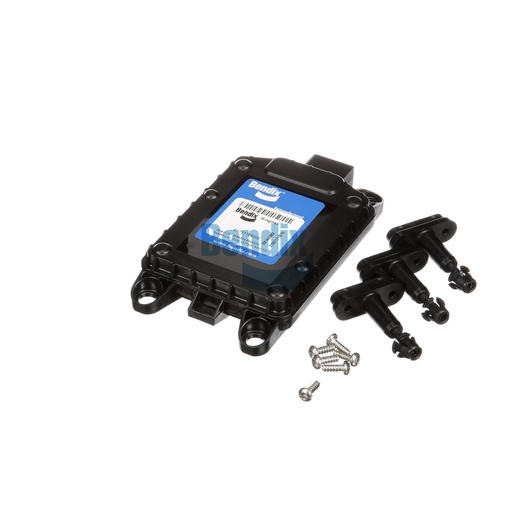

The Front Radar Assembly is an advanced component designed to enhance safety and collision mitigation in commercial vehicles. Utilizing state-of-the-art radar technology, this assembly provides essential data to driver assistance systems, helping to prevent accidents and improve overall road safety. With a compact design and rigorous engineering, it ensures reliable performance in various driving conditions. The assembly is easy to install and integrates seamlessly with existing systems, making it an essential upgrade for modern fleets. When it comes to sourcing Bendix OEM parts, Source One Parts Center is the premier choice, ensuring you receive authentic, high-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
036-001-032: Sensor - Front, Collision Avoidance System
Width
164.0 mm (6.46 in)
CAN Baud Rate
250 Kilobaud
Length
32.0 mm (1.26 in)
Harmonized System (HS) Code
852610
Height
95.0 mm (3.74 in)
Software Version
BX160802
Product Type
FLR-20
Country of Origin
France
Connector
MCON Interconnection System 10-Way Sealed Connector (Female)
Application
Wingman Advanced
Weight
1.09 lb
